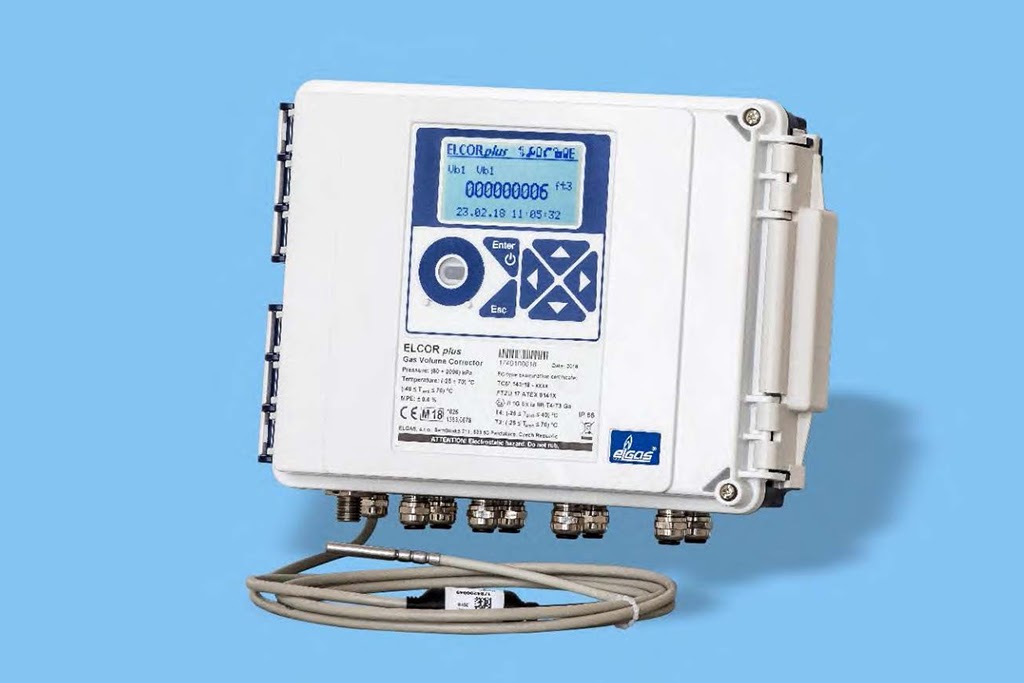

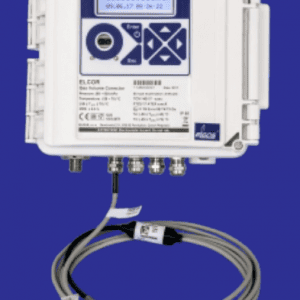

ElcorPlus Datcom 3G


The Elcor Volume Corrector is designed to be a compact, versatile device integrating metrological measurement, telemetry and communications capabilities.



-High Accuracy and reliable measurement

-Robust Design

– Modular Technology

– MID and Atex Approved

-Long Battery life


-Tamper Proof


Housed in an IP66 rated Glass fiber Polycarbonate case with lockable closing mechanism these devices are tamper and weather resistant.


Can be used as a single or dual channel to take in multiple pulse inputs.


Simplified Technical Spec

  • Power: Lithium Battery up to 11 years
  • Serial Communications: None
  • Optical Communications: HIE-04 Optical interface
  • Wireless Communications: 3G Modem
  • Digital inputs: 12 x (LF or Binary)
  • Digital outputs: 4x (LF or Binary)
  • Analogue inputs(4-20mA): None
  • Analogue outputs(4-20mA): 4 x (using external module CLO)


Digital Transducers

Pressure Transducer Type: EDT96

Standard MID approved Ranges: 0.8 – 5.2;

Temperature Transducer Type:EDT101

Standard approved Range: -25 to 70C
