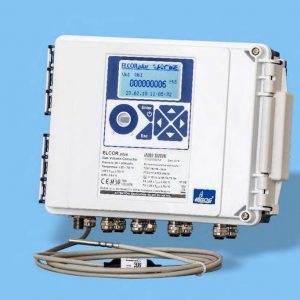

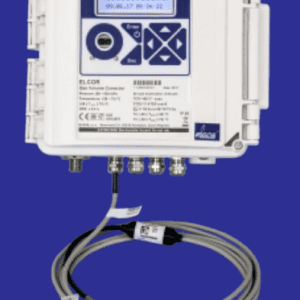

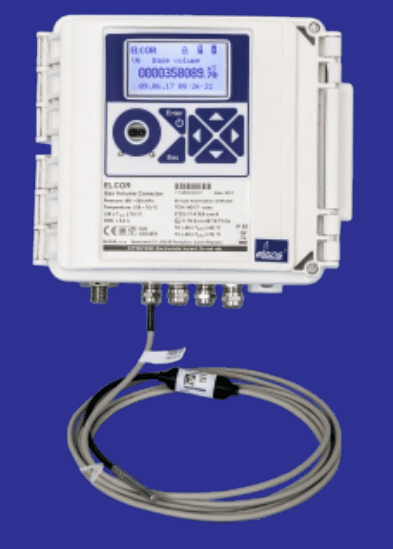

Elcor

The Elcor Volume Corrector is designed to be a compact, versatile device integrating metrological measurement, telemetry and communications capabilities.

Highlights

-High Accuracy and reliable measurement

-Robust Design

– Modular Technology

– MID and Atex Approved

-Long Battery life

-Upgradeable

-Tamper Proof

Housed in an IP66 rated Glass fiber Polycarbonate case with lockable closing mechanism these devices are tamper and weather resistant.

Simplified Technical Spec

• Power: Lithium Battery up to 11 years
• Serial Communications: 1 x RS232 or RS485
• Optical Communications: HIE-04 Optical interface
• Wireless Communications: None
• Digital inputs: 3x (LF or Binary)
• Digital outputs: 2x (LF or Binary)
• Analogue inputs(4-20mA): None
• Analogue outputs(4-20mA): 2 x (using external module CLO)

Digital Transducers

Pressure Transducer Type: EDT96

Standard MID approved Ranges: 0.8 – 5.2;

Temperature Transducer Type:EDT101

Standard approved Range: -25 to 70C
